Hire and Installation of Event Boards

We have a wide range of Event Boards ready for any size event. Get in touch if you want to talk through your needs to ensure you have the right kit to supply everything you need to be powered.

See our Installation page for more details of how we can further support if needed, alternatively we can just hire the boards.

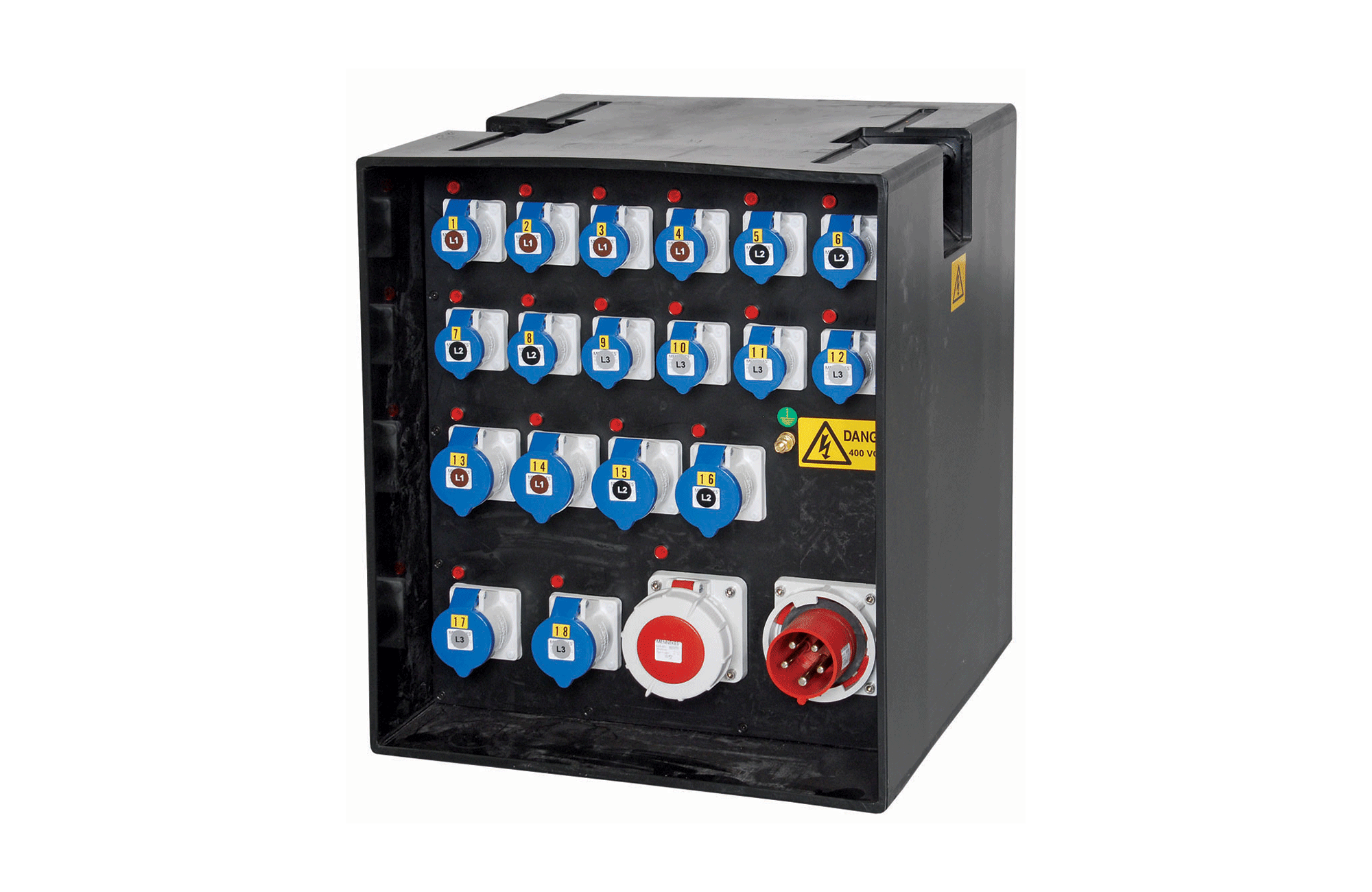

Distribution Board 2 (EB2)

MD Board
Incoming: 63A 3 phase
Outgoing: 1 x 63A 3 phase (Through), 6 X 32A 1 phase, 12 X 16A 1 phase
Outgoing Protection: 1 x 63A 4P MCB, 6 x 32A 2P 30mA RCBO, 12 x 16A 2P 30mA RCBO
Size: 600mm (H) x 550mm (W) x 495mm (D)
Weight: 32kg

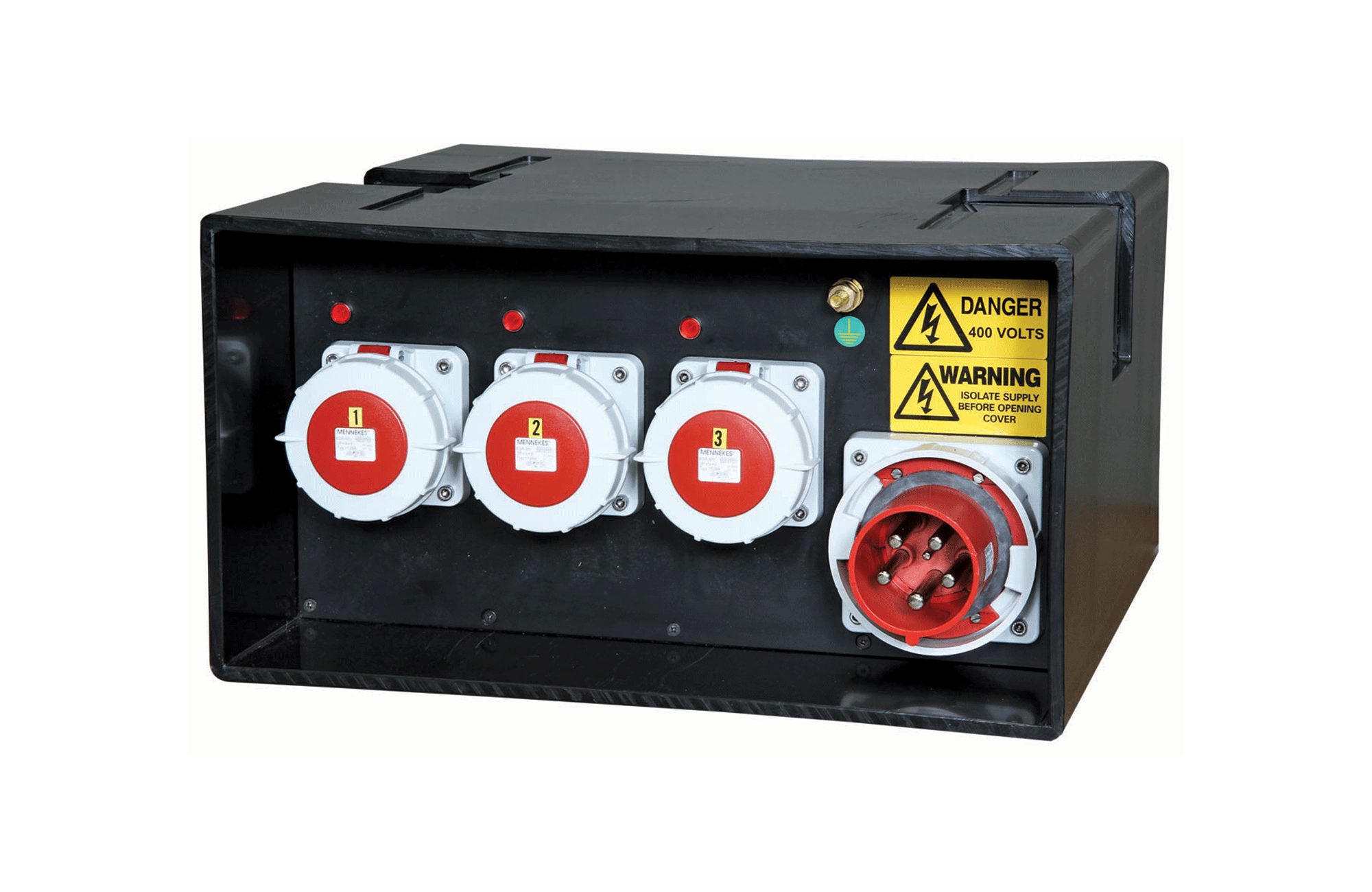

Distribution Board 3 (EB3)

MD Board
Incoming: 125A 3 phase
Outgoing: 3 x 63A 3 phase
Outgoing Protection: 3 x 63A 4P MCB
Size: 300mm (H) x 550mm (W) x 495mm (D)
Weight: 19kg

Distribution Board 6 (EB6)

MD Board
Incoming: 63A 3 phase
Outgoing: 1 x 63A 3 phase (Through), 2 x 32A 3 phase
Outgoing Protection: 2 x 32A 4P MCB
Size: 350mm (H) x 450mm (W) x 400mm (D)
Weight: 12kg

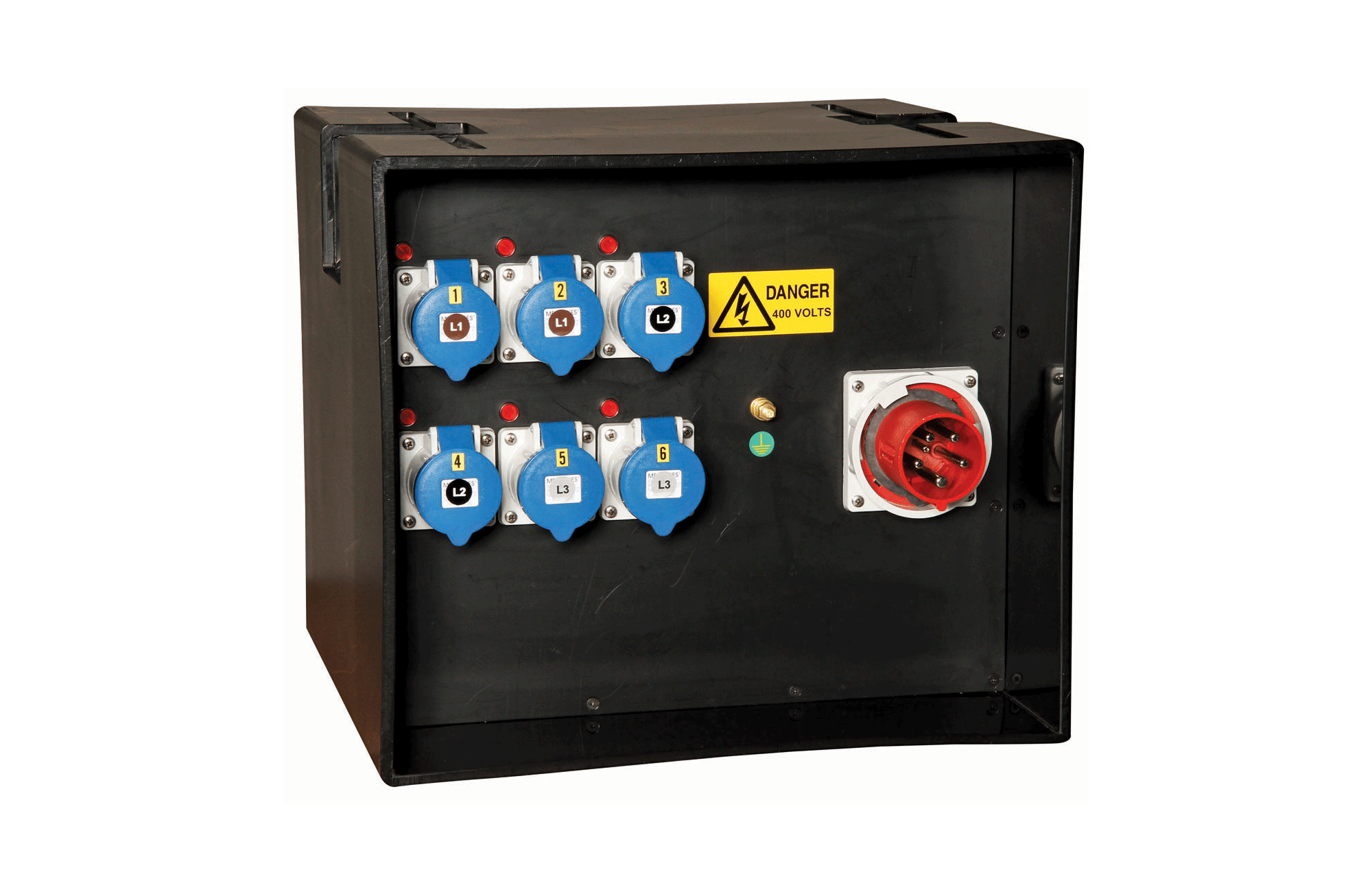

Distribution Board 8 (EB8)

MD Board
Incoming: 63A 3 phase
Outgoing: 6 x 32A 1 phase
Outgoing Protection: 1 x 63A 4P MCB, 6 x 32A 2P 30mA RCBO
Size: 450 (H) x 550 (W) x 495 (D)
Weight: 17kg

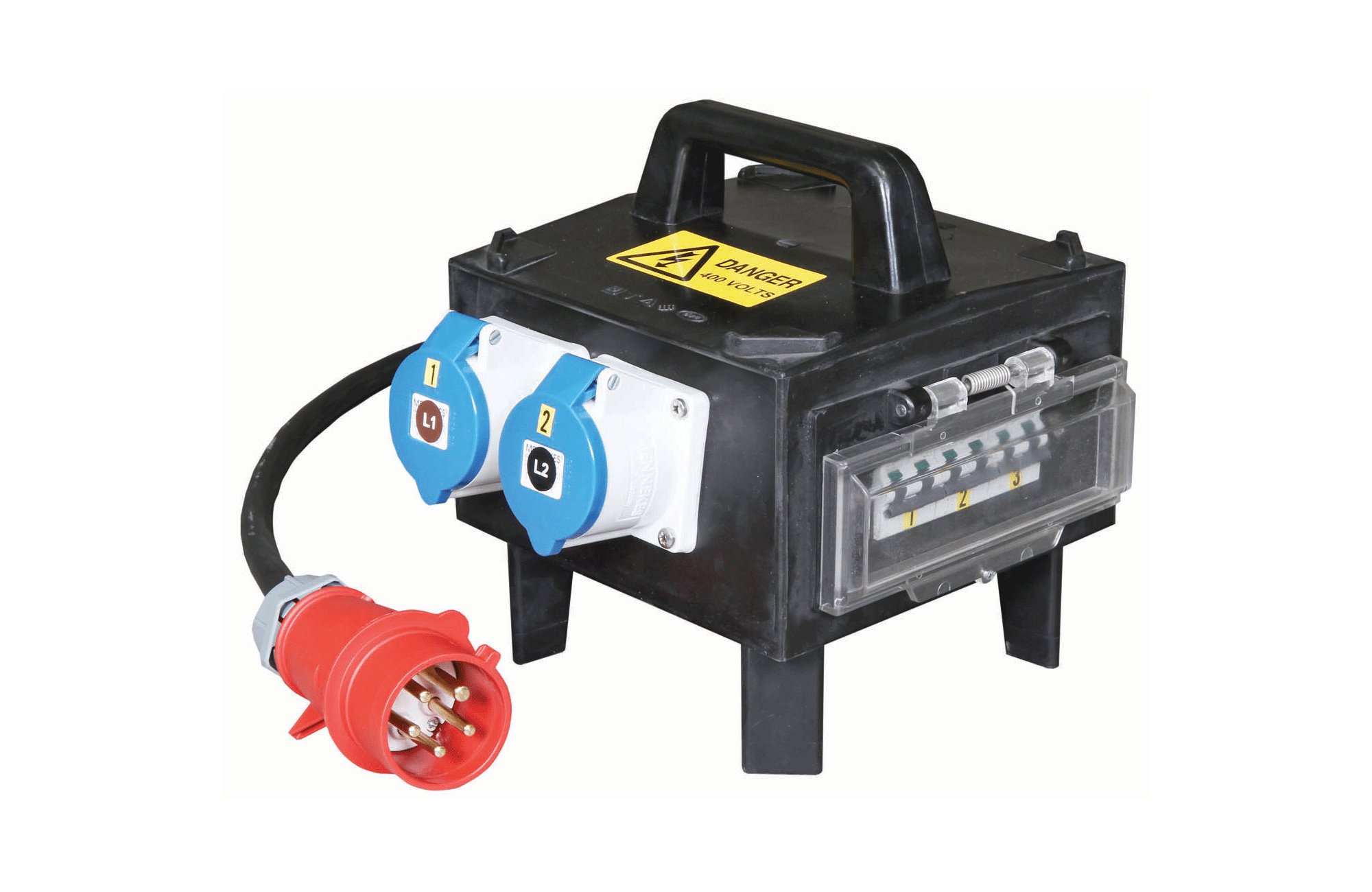

Distribution Board 11 (EB11)

MD Board
Incoming: 32A 3 phase
Outgoing: 3 x 32A 1 phase
Outgoing Protection: 3 x 32A 2P 30mA RCBO
Size: 300mm (H) x 400mm (W) x 350mm (D)
Weight: 10kg

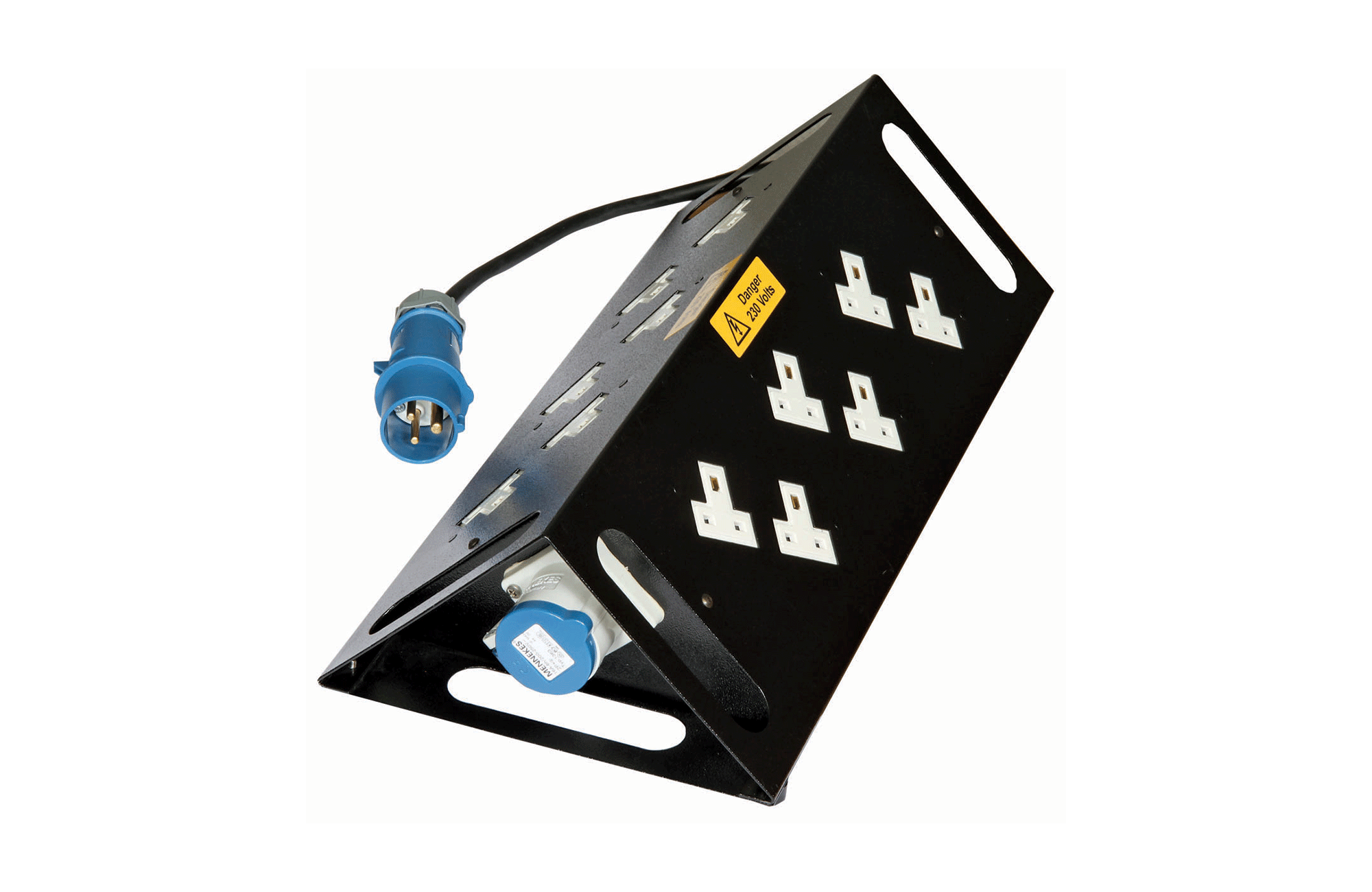

Distribution Board Toblerone 16 (EB16)

MD Board
Incoming: 16A 1 phase
Outgoing: 1 x 16A 1 phase, 12 x 13A 230V (BS1363) Socket Outlets
Outgoing Protection: N/A
Size: 125mm (H) x 245mm (W) x 550mm (D)
Weight: 6kg

Distribution Board Toblerone 17 (EB17)

MD Board
Incoming: 32A 1 phase
Outgoing: 1 x 32A 1 phase, 12 x 13A 230V (BS1363) Socket Outlets
Outgoing Protection: N/A
Size: 125mm (H) x 245mm (W) x 550mm (D)
Weight: 6kg

Distribution Board 24 (EB24)

MD Board
Incoming: 63A 3 phase
Outgoing: 1 x 63A 3 phase (Through), 6 x 32A 1 phase, 6 X 16A 1 phase
Outgoing Protection: 1 x 63A 4P MCB, 6 x 32A 2P 30mA RCBO, 6 x 16A 2P 30mA RCBO
Size: 340mm (H) x 560mm (W) x 350mm (D)
Weight: 17kg

Distribution Board 27 (EB27)

MD Board
63A 3 phase
2 x 32A 3 phase
2 x 32A 4P 30mA RCBO
350mm (H) x 450mm (W) x 400mm (D)
13kg

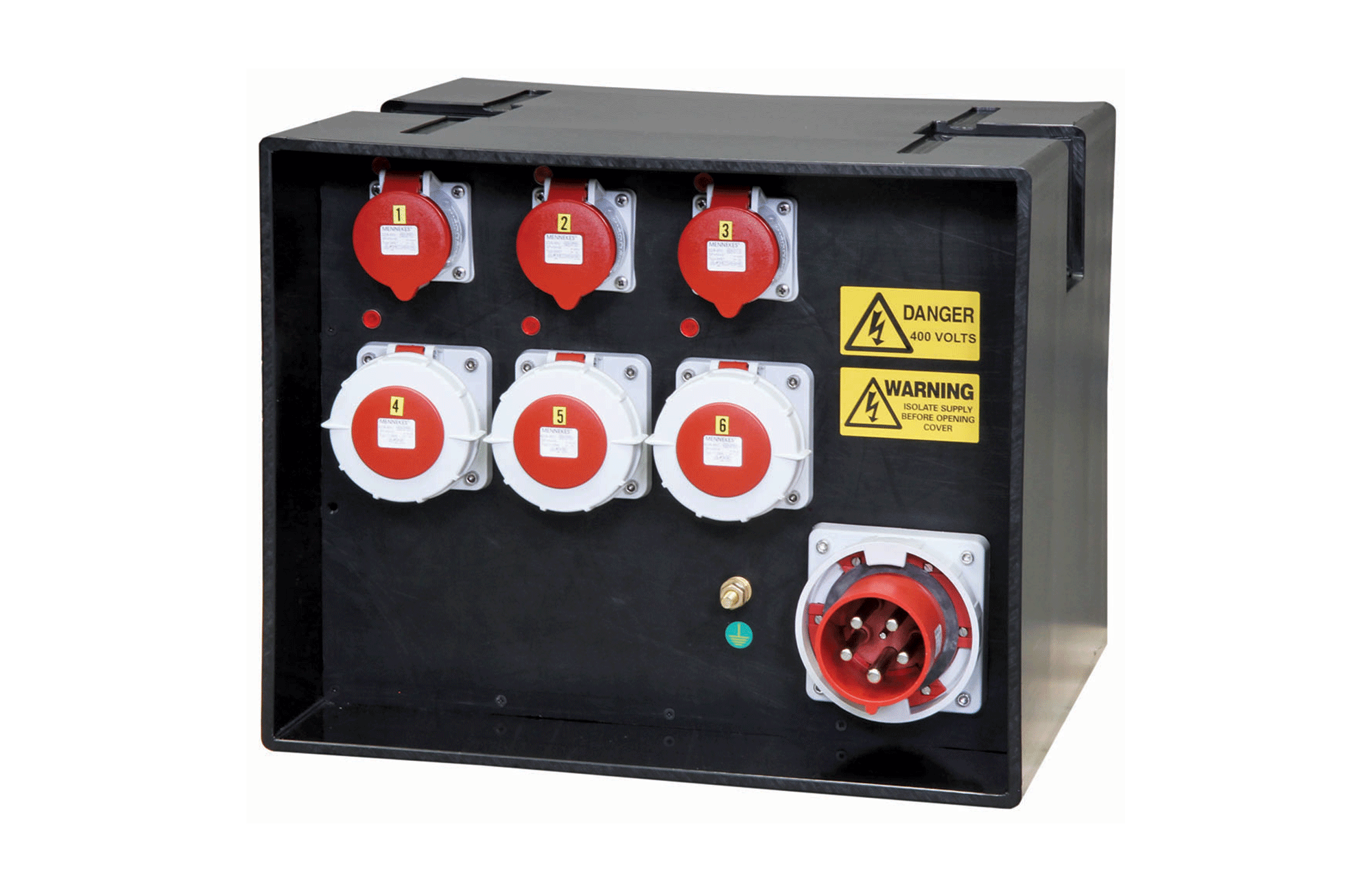

Distribution Board 28 (EB28)

MD Board
Incoming: 125A 3 phase
Outgoing: 3 x 63A 3 phase, 3 x 32A 3 phase
Outgoing Protection: 125A 4P MCCB, 3 x 63A 4P MCB, 3 x 32A 4P 30mA RCBO
Size: 450mm (H) x 550mm (W) x 495mm (D)
Weight: 30kg

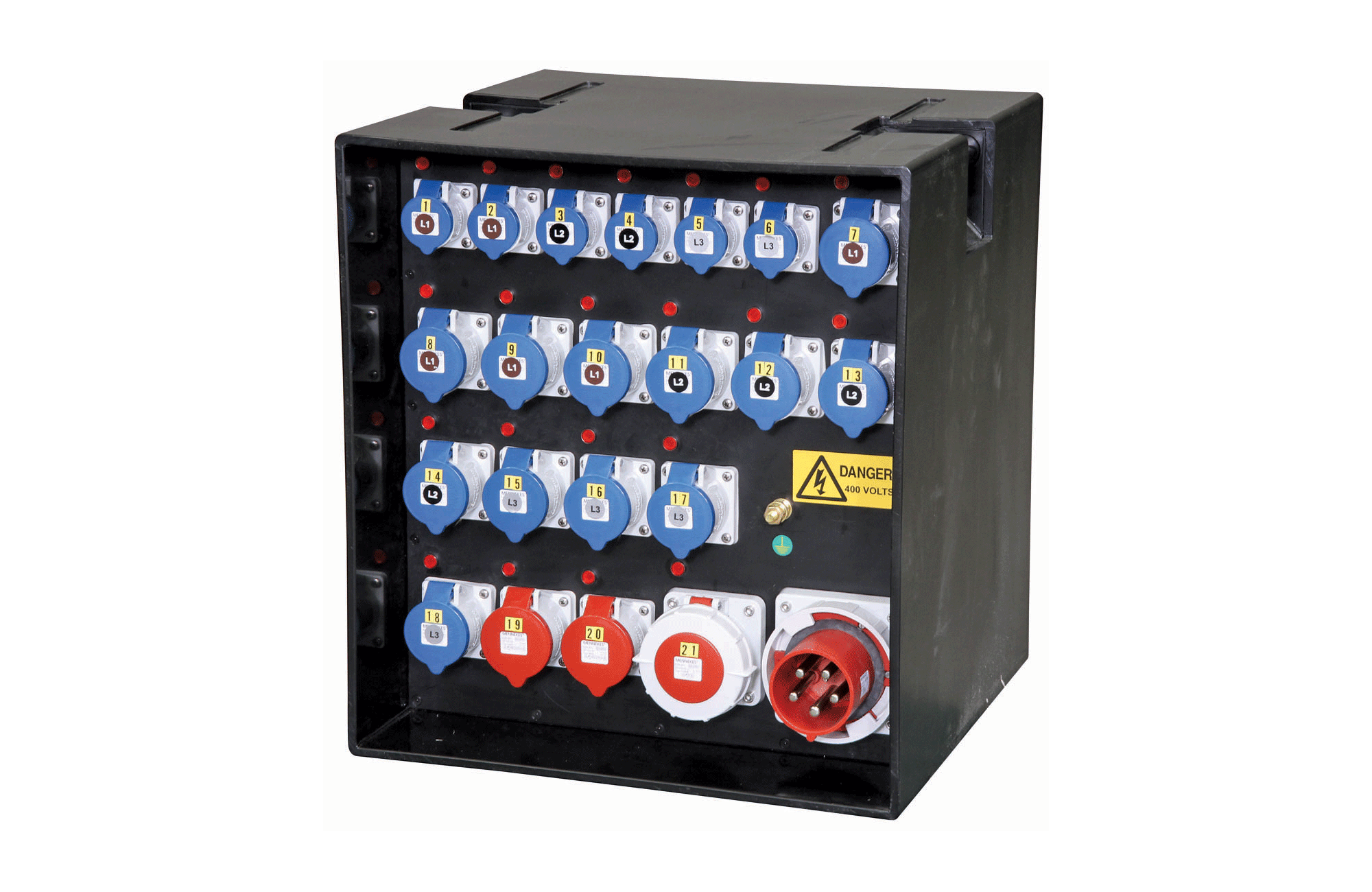

Distribution Board 32 (EB32)

MD Board
Incoming: 125A 3 phase
Outgoing: 1 x 63A 3 phase, 2 x 32A 3 phase, 12 x 32A 1 phase, 6 x 16A 1 phase
Outgoing Protection: 125A 4P MCCB, 63A 4P MCB, 2 x 32A 4P 30mA RCBO, 12 x 32A 2P 30mA RCBO, 6 x 16A 2P 30mA RCBO
Size: 600mm (H) x 550mm (W) x 495mm (D)
Weight: 41kg

Distribution Board 35 (EB35)

MD Board
125A 3 phase
6 x 32A 3 phase
125A 4P MCCB, 6 x 32A 4P 30mA RCBO
450mm (H) x 550mm (W) x 495mm (D)
30kg

Distribution Board 38 (EB38)

MD Board
Incoming: 63A 3 phase
Outgoing: 2 x 32A 3 phase, 6 x 32A 1 phase, 3 x 16A 1 phase
Outgoing Protection: 2 x 32A 4P 30mA RCBO 6 x 32A 2P 30mA RCBO 3 x 16A 2P 30mA RCBO
Size: 450mm (H) x 550mm (W) x 495mm (D)
Weight: 25kg

Distribution Board 40 (EB40)

MD Board
Incoming: 63A 3 phase
Outgoing: 6 x 16A 3 phase
Outgoing Protection: 6 x 16A 4 Pole 30mA RCBO
Size: 450mm (H) x 550mm (W) x 495mm (D)
Weight: 25kg

Distribution Board 41 (EB41)

MD Board
Incoming: 63A 3 phase
Outgoing: 3 x 63A 1 phase
Outgoing Protection: 1 x 63A 4P MCB, 3 x 63A 2P MCB
Size: 300mm (H) x 550mm (W) x 495mm (D)
Weight: 17kg

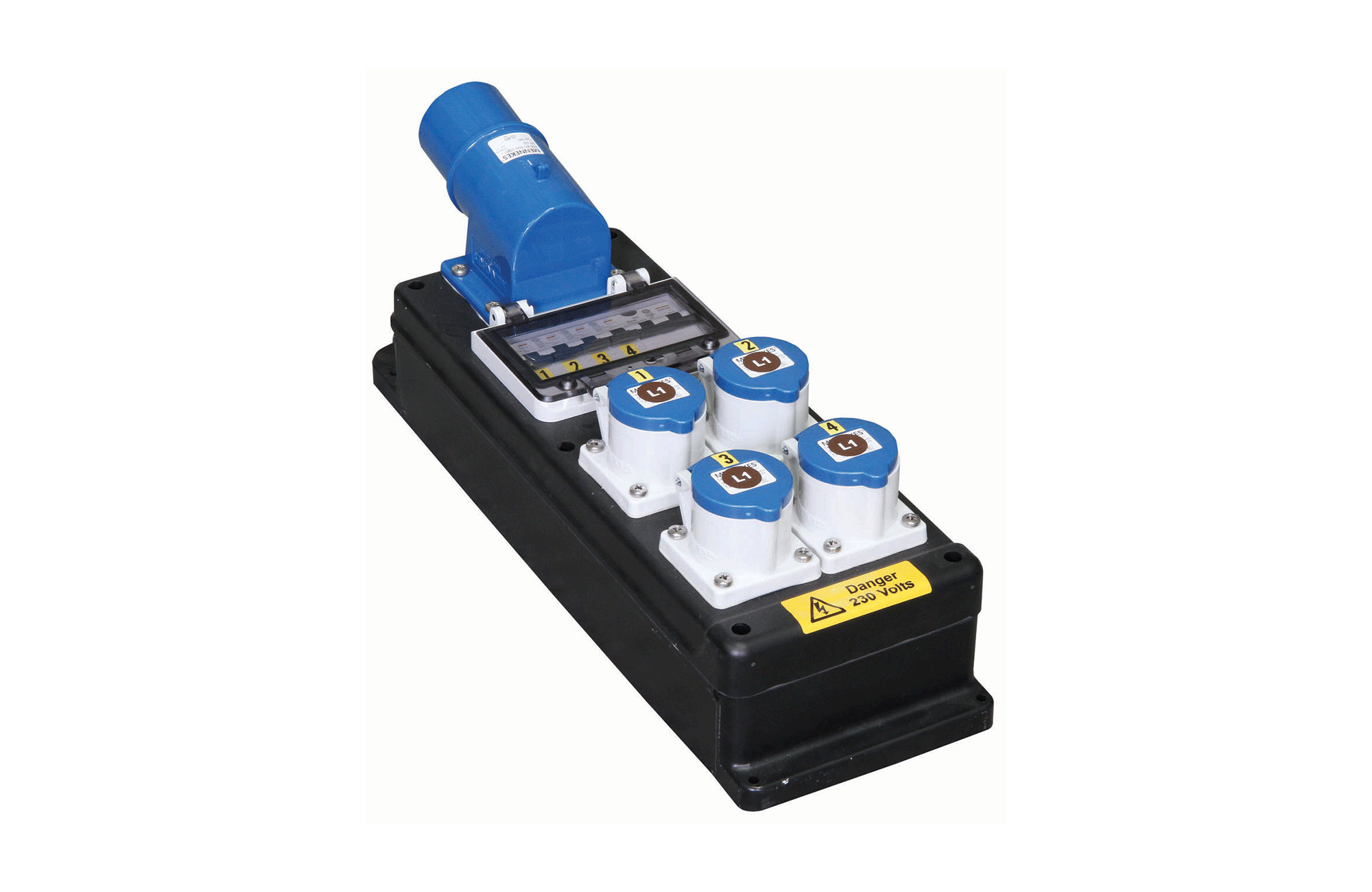

Distribution Board 42 (EB42)

MD Board
Incoming: 32A 1 phase
Outgoing: 4 x 16A 1 phase
Outgoing Protection: 1 x 32A 2P RCBO, 4 x 16A MCB
Size: 190mm (H) x 450mm (W) x 160mm (D)
Weight: 4kg

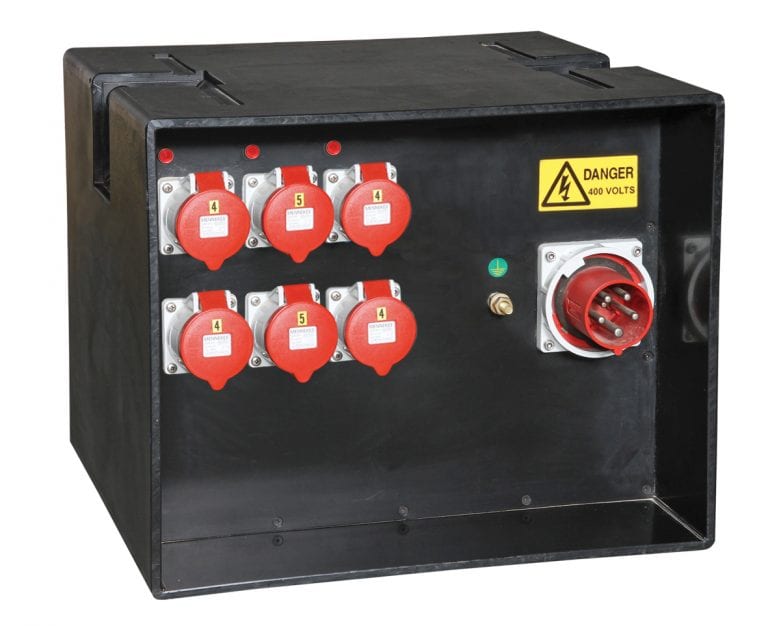

Distribution Board 50 (EB50)

MD Board
Incoming: 63A 3 phase
Outgoing: 3 x 16A 3 phase, 3 x 32A 3 phase
Outgoing Protection: 3 x 32A 4 Pole 30mA RCBO, 3 x 16A 4 Pole 30mA RCBO
Size: 450mm (H) x 550mm (W) x 495mm (D)
Weight: 33kg

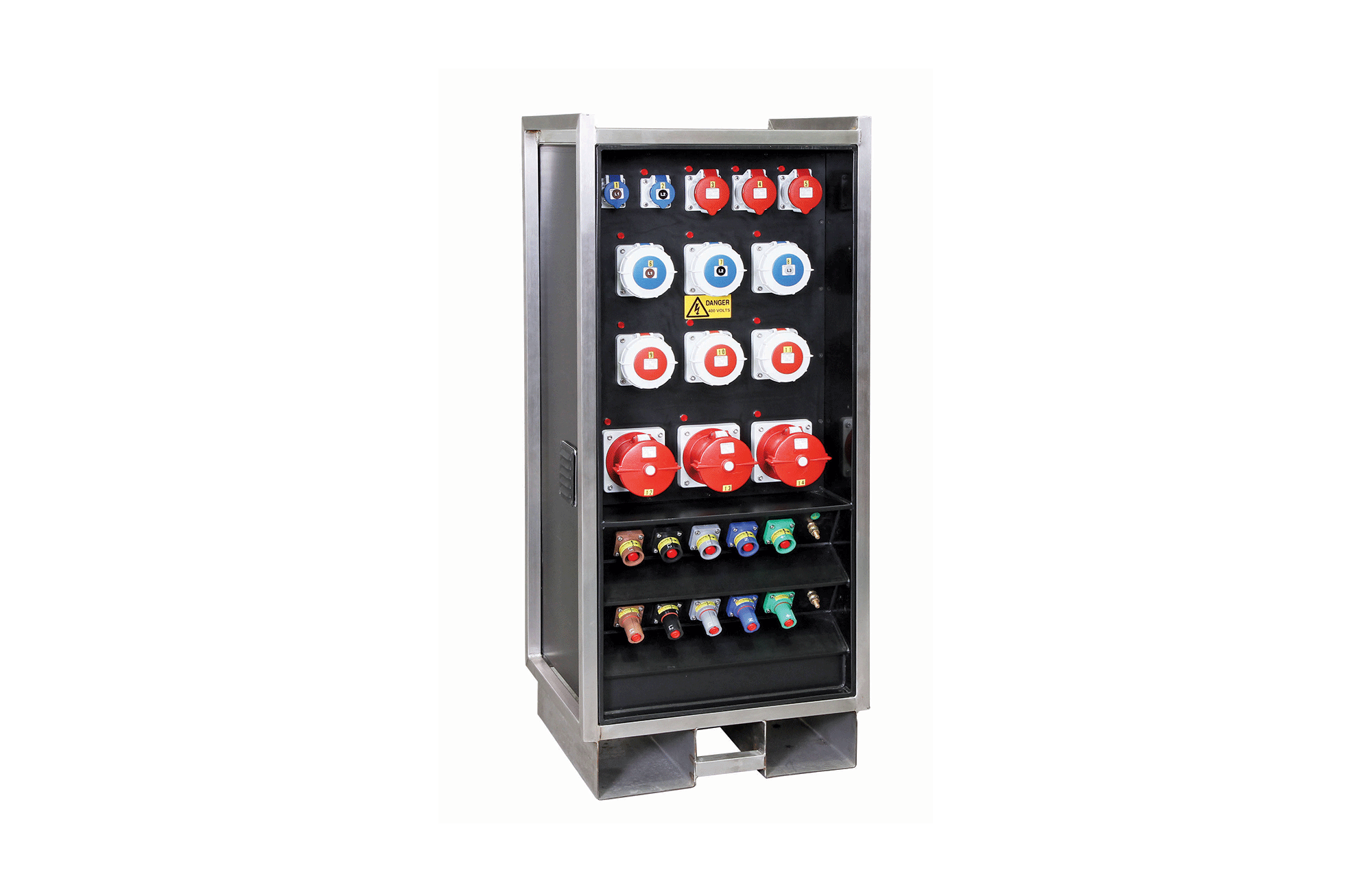

Distribution Board 402 (EB402)

MD Board
Incoming: 400A Powerlocks 3 phase
Outgoing: 400A Powerlocks (Through), 3 x 125A 3 phase, 3 x 63A 3 phase, 3 x 63A 1 phase, 3 x 32A 3 phase, 2 x 16A 1 phase
Outgoing Protection: 400A 4P MCCB, 3 x 125A 4P MCCB c/w Adjustable/Switchable Earth Leakage, 3 x 63A 4P MCB & 100mA RCD, 3 x 63A 2P MCB & 100mA RCD, 3 x 32A 4P 30mA RCBO, 2 x 16A 2P 30mA RCBO
Size: 1392mm (H) x 612mm (W) x 495mm (D)
Weight: 110kg
